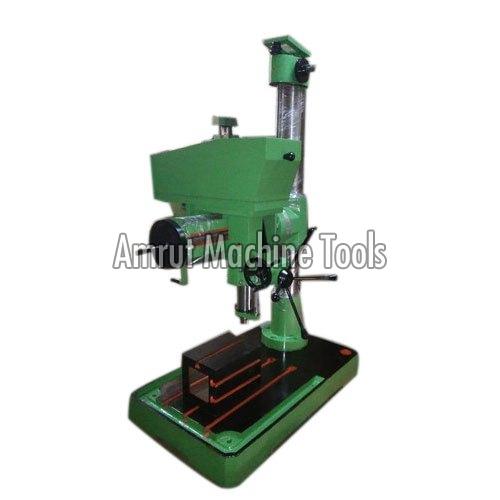

Product Details
| Product Code | R.C. 25R |
| Automatic Grade | Automatic |
| Brand Name | Prashant |
| Spindle Travel | 230 mm |
| Drilling Capacity in MS | 25mm |
| Machines Area of Base | 600X715mm |
| Dia of Column | 127mm |
| Max. Distance Spindle Nose To Base | 880 mm |
| Max Spindle Centre To Column | 665 mm |
| Vertical Adjustment of Arm | 600mm |
| Size of Box Table | 205x205x285 mm |
| Overall Height of Machine | 1550 mm |
| Floor Space Occupied | 700x1100 mm |
| No. of Spindle Speeds 8(4 Direct, 4 Geared) | 120 to 2800 |
| Spindle Feed by Fine Feed | Star Lever And Worm |
| Drill Head Motor | 1 HP 1440 RPM |
| Elevating Motor | 0.5 HP 1440 RPM |
| Net Weight | 485 Kg |
| Vee Belt | B 40 |
| Lifting Vee Belt | A 20 |
| Spindle Nose Bore | M-T-3/M-T-4 |
Product Details
| Drilling Capacity | 40 mm |
| Type of Drilling Machine | Radial |
| Power Source | Electric |
| Frequency | 50 Hz |
| Automation Grade | Automatic |
| Drill Head Motor Power | 2HP, RPM 1440 |
| Size Of Box Table | 305x305x380 mm |
| Elevating Motor Power | 0.5 HP, 1440 RPM |
