Pillar Drill Machine
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of 20mm Pillar Drill Machine, 25mm Pillar Drill Machine, 32mm Pillar Drill Machine and 40mm Pillar Drill Machine from Bhavnagar.

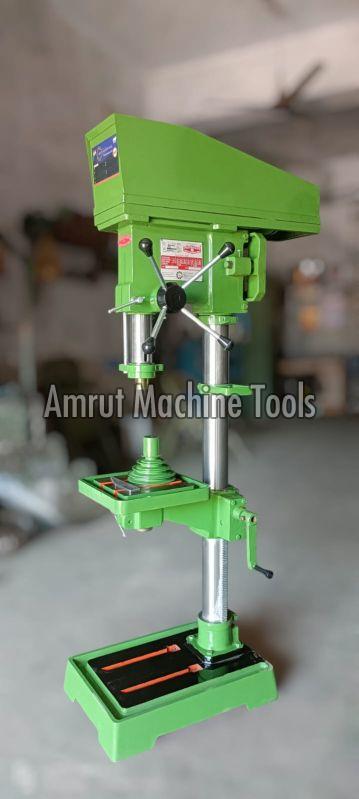

| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Drilling Capacity | 20 mm |
| Spindle Travel | 130 mm |
| Taper in Spindle | MT -3/MT-2 |
| Main Motor Power | 1 HP (1440 RPM 3 Phase 440 volts) |
| Tilting Working Table | Upto 360 Degree |
| Pillar Diameter | 74.20 mm |
| Spindle Nose to Table Distance | 650 mm |
| Distance from spindle nose to base distance | 900 mm |
| Distance from spindle center to pillar surface | 200 mm ( MAX ) |
| Table Travel | 200 mm |
| Number of speed | 8 Speed |
| Range of Speed (RPM) | 80 to 3500 |
| Table Size (in mm) | 270 x 270 |
| Base size (Machined Area mm) | 470 x 320 |
| Overall Base Size (in mm) | 490 x 310 |
| Pillar Length | 1170 mm |
| Overall height with pulley guard | 1420 mm |
| V-Belt section | A - 44 |
| Weight (Approx.) | 110 kg. |
| Shipping Wooden Case Inner Size LxWxH (in mm) | 660x380x1140 mm |
| Brand | Prashant |
| Product Brochure |  View |
| Product Code | DMA-02 |
Preferred Buyer From
| Location | Worldwide |
MOQ : 1 Piece(s)

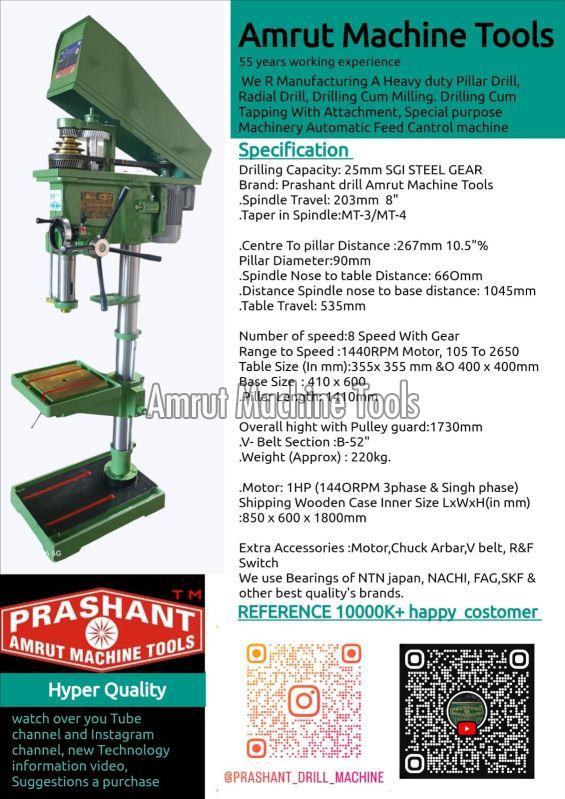

| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Drilling Capacity | 25 mm |
| Spindle Travel | 177 mm |
| Taper in Spindle | MT-3 /MT - 4 |
| Tilting Working Table | Fixed |
| Pillar Diameter | 90mm |
| Spindle nose to table distance | 660 mm |
| Distance from spindle nose to base distance | 1045 mm |
| Distance from spindle center to pillar surface | 267 mm (max) 10.5" |
| Table Travel | 535 mm |
| Range of Speed (RPM) | 960/1440 |
| Table Size (in mm) | 342x342/ 385x385 |
| Base size machining size | 315x 575 mm |
| Overall Base Size (in mm) | 405 x 580 |
| Pillar Length | 1410 mm |
| Overall height with pulley guard | 1730 mm |
| V-Belt section | B-51" |
| Weight (Approx.) | 215 Kg |
| Motor | 1 HP (1440 RPM 3 Phase 440 volts) |
| Shipping Wooden case inner size | 850x500x1770 mm |
| Brand Name | Prashant |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Brand Name | Prashant |
| Spindle Travel | 8" 203mm |
| Motor | 1.5 H.P. / 2 H.P. |
| Tilting Working Table | Fixed |
| Pillar Diameter | 90 mm |
| Drilling Capacity in Mild Steel | 32 mm |
| Spinddle Centre to Column | 10" 254 mm |
| Size of Table Square | 19" x 482 mm |
| Size of Table Round | 15(1/2)" 393 mm |
| Over All-Height of Machine | 68" 1750 mm |
| Max distance Spindle to base | 40" 1016 mm |
| Coloumn Diameter | (4*28)" 108 mm |
| Machine Base | 26" x 18" x4" 660 x 457 x 101 mm |
| Spindle Nose Bore | MT-3/MT-4 |
| Speed Range | (8) 90 x 2265 R.P.M. |
| Motor Speed | 1440 R.P.M. |
| V-Belt | B - 53 / B-55 |
| Weight of machine without motor | 250 kg. (Approx) |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Brand Name | Prashant |
| Drilling Capacity | 40 mm |
| Spindle Travel | 247 mm |
| Taper in Spindle | MT-4 |
| Tilting Working Table | Fixed |
| Pillar Diameter | 120 mm |
| Spindle nose to table distance | 595 mm |
| Distance from spindle nose to base distance | 1050 mm |
| Distance from spindle center to pillar surface | 317mm,12.50"(MAX) |
| Table Travel | 700 mm |
| Number of Speed | 8 Speed |
| Range of Speed (RPM) | 70 to 2000 |
| Table Size (in mm) | 430 x 430, 580 x 580 |
| Overall Base Size (in mm) | 480 x 690 |
| Pillar Length | 1450 mm |
| Overall height with pulley guard | 1860 mm |
| V-Belt Section | B-60 '' |
| Weight (Approx.) | 340 Kg |
| Motor | 2 HP (1440 RPM 3 Phase 440 Volts) |
| Shipping Wooden Case Inner Size | 860x460x1880 mm |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
